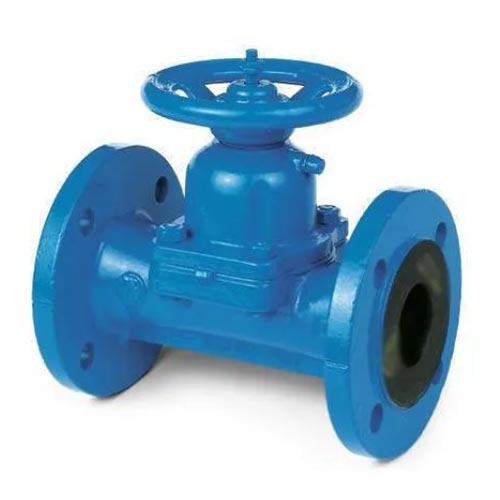

Diaphragm Valves

FEATURES:

Size : 1″ – 10″ (25mm – 250mm)
Desige Code : BS 5156
Pressure Rating : PN 6 – PN 16
MAT. OF CON. : CI / CS / SS / Alloys / Monel / Hastelloys MOC
Actuation : Handle Wheel, Pneumatic Cylinder
Body Lining : EPDM / Ebonite / Neoprene / FRP / PTFE / Butyl
Body Diaphragm : EPDM / Ebonite / Neoprene / FRP / PTFE / Butyl

SPECIALIZATION:

Flange Drilling : ANSI B 16.5 / BS 10 Table / DIN / JIS
Butt Weld End : ANSI B16.25
SW Ends : ANSI B 16.11
Testing : BS 6755-1
Pressure -Temperature Rating : ASTM B 16.34
